Electric ink displays

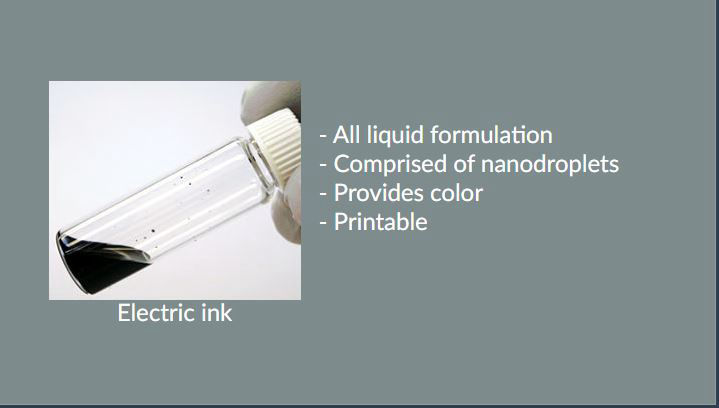

Zikon's electric ink technology uses nanodroplets of colored ink to create images on paperlike substrates. Images can be changed by application of low voltages.

Paper-like displays are opening previously inaccessible segments in the display market. They are characterized by low power consumption and paper-like appearance, including ambient -light readability without a backlight and wide viewing angles.

Zikon's proprietary electric ink technology meets market demands for paper-like displays by offering high contrast and great viewability along with low voltage (logic level) operation at an exceptionally affordable cost.

Mobirise Website Builder

Reflective, Paperlike Displays

Technology

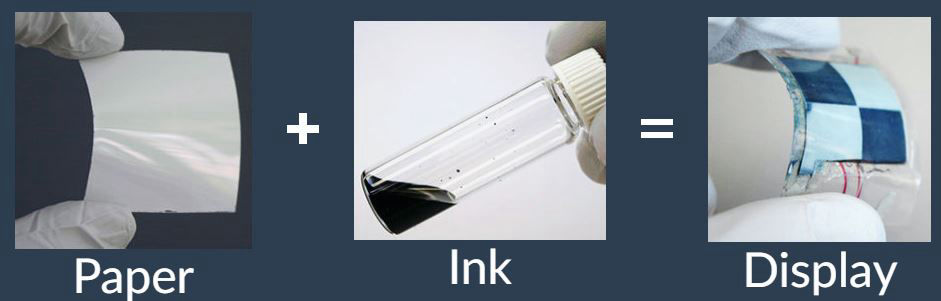

Conceptually intuitive and simple to make

Mobirise Website Builder
Mobirise Website Builder
Mobirise Website Builder
Mobirise Website Builder

Image Description

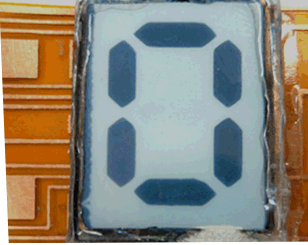

High Contrast, Low Cost, Low Power


•Great viewability: paper-like appearance

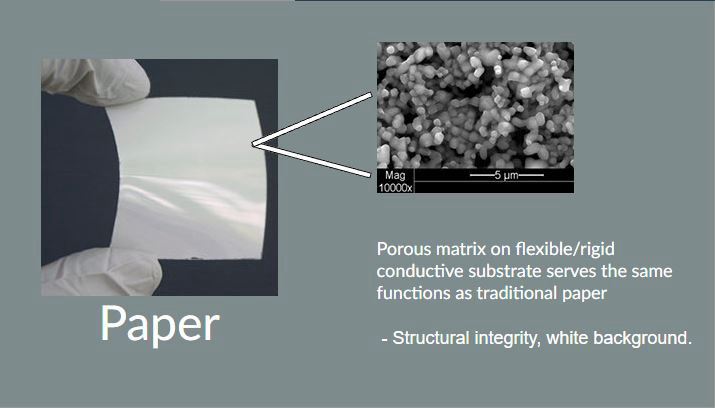

•Rigid or flexible substrates.
•Low, logic-level, driving voltage (<3V)
•Simple design
•Very low manufacturing cost
•Very low power consumption.

Transmissive / Transparent Displays

Transmissive displays operate on the principle of dipole-dipole interactions between polarizable nanodroplets. The displays are made sandwiching an all liquid ink between two transparent electrodes. No filters, polarizers, surface treatments, or other features needed.

Publications

  • “LATERAL INK MOBILITY AND FRINGE FIELD EFFECTS ACROSS THE POROUS MATRIX OF AN ELECTROPHORETIC DISPLAY", K.L. TSUI, M. AHUMADA, M. BRYNING, M. HARTONO, S. J. LEE, PROC. SPIE, VOLUME 8643, 86430M,2013
  • “EFFECT OF NANODROPLET INK CONCENTRATION ON SWITCHING RESPONSE OF REVERSE-EMULSION ELECTROPHORETIC DISPLAYS”, W. K. WANG, R. CROMER, M. GOEDERT, M. MOBED-MIREMADI ; S. J. LEE PROC. SPIE 8643, 86430A, 2013
  • “A THIN POROUS SUBSTRATE USING BONDED PARTICLES FOR REVERSE-EMULSION ELECTROPHORETIC DISPLAYS", M. AHUMADA, M. BRYNING, R. CROMER, M. HARTONO, S. J. LEE, PAPER 8280-26, PROC. SPIE, VOLUME 8280, 2012
  • “DIELECTROPHORESIS OF REVERSE PHASE EMULSIONS” FLORES-RODRIGUEZ, N. ; BRYNING, Z. ; MARKX, G.H. NANOBIOTECHNOLOGY, IEE PROCEEDINGS, VOLUME 152 , ISSUE 4 , PAGE(S): 137 – 144, 2005
  • “ELECTROPHORETIC DISPLAY UTILIZING PHASE SEPARATION OF LIQUIDS” Z. BRYNING, R. CROMER, US PATENT 5582700, 1996
  • “NOVEL SYSTEMS, METHODS AND COMPOSITIONS RELATING TO ELECTROPHORETIC DISPLAYS” M.B. BRYNING, Z. BRYNING, AND R. CROMER, U.S. PATENT APPLICATION NO. 20090322669, FEBRUARY, 2008
